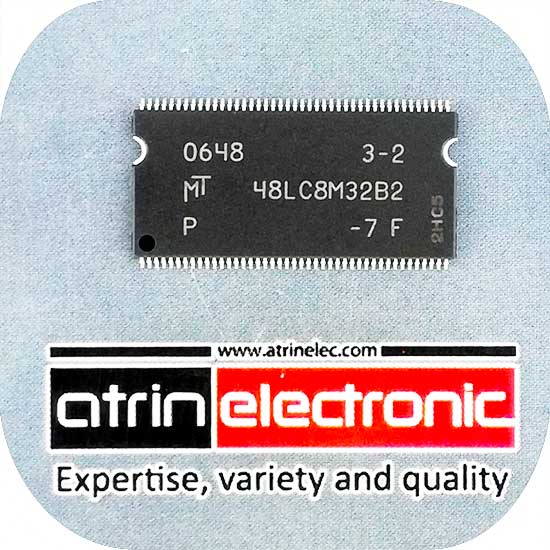

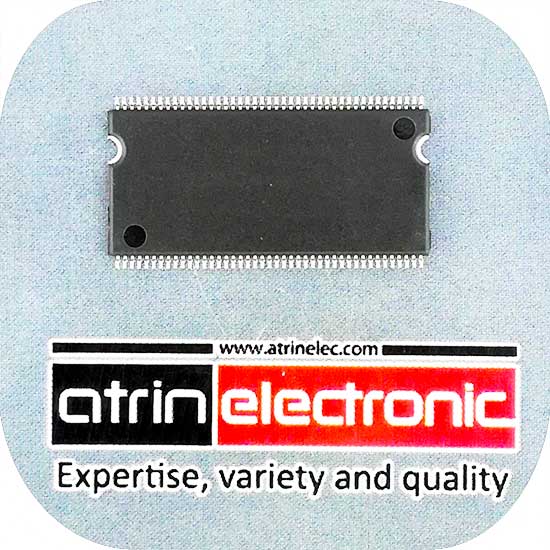

ای سی حافظه 256 مگابیت ،32 مگا بایت SDRAM 256Mb: x32 اورجینال
Features
PC100 functionality •
Fully synchronous; all signals registered on positive edge of system clock •
Internal pipelined operation; column address can be changed every clock cycle •
Internal banks for hiding row access/precharge •
Programmable burst lengths: 1, 2, 4, 8, or full page •
Auto Precharge, includes Concurrent Auto Precharge, and Auto Refresh Modes •
Self Refresh Mode •
64ms, 4,096-cycle refresh (15.6µs/row) •
LVTTL-compatible inputs and outputs •
Single +3.3V ±0.3V power supply •
Supports CAS latency of 1, 2, and 3 •
