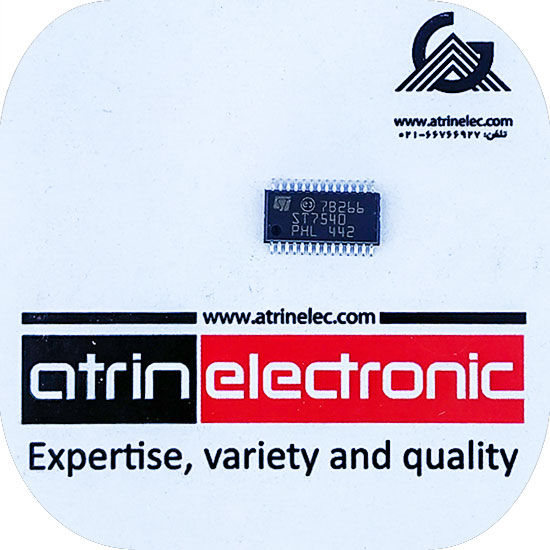

ای سی مودم FSK سنکرون و آسنکرون به صورت Half Duplex جهت ارسال دیتا از طریق خطوط برق FSK power line transceiver

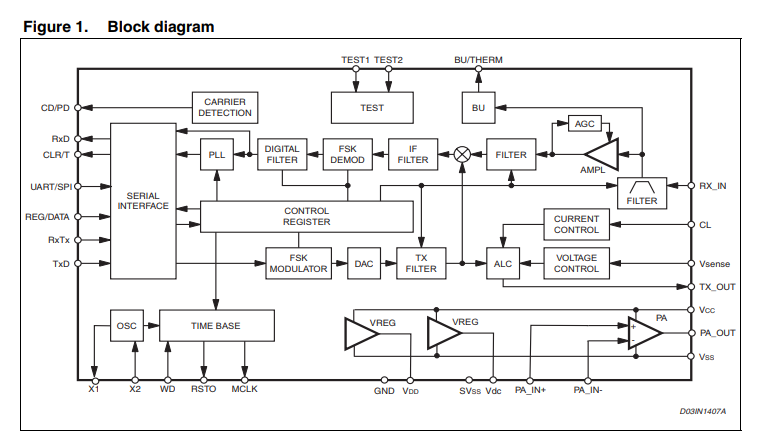

General features
Half-duplex frequency shift keying (FSK) transceiver

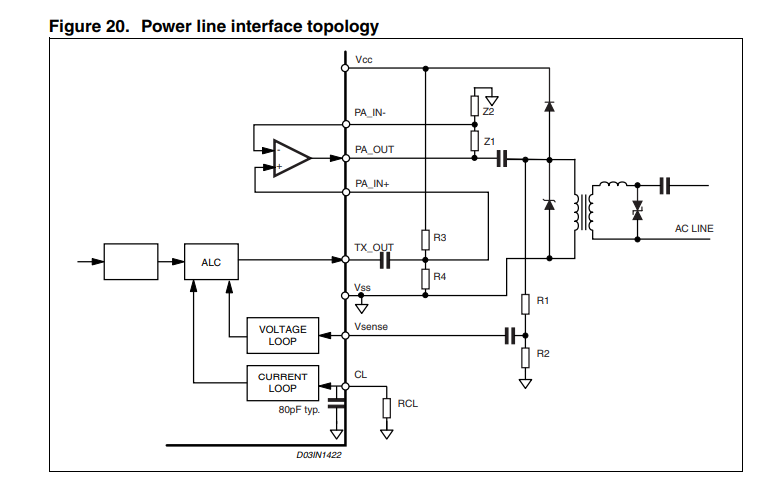

Integrated power line driver with programmable voltage and current control
Programmable mains access: – Synchronous – Asynchronous
(Single supply voltage (from 7.5V up to 13.5V
( Very low power consumption (Iq = 5mA
Integrates 5V voltage regulator (up to 50mA) with short circuit protection
Integrated 3.3V voltage regulator (up to 50mA) with short circuit protection
3.3V or 5V digital supply
8 Programmable transmission frequencies
Programmable baud rate up to 4800BPS
Receiving sensitivity up to 250µVRMS
Suitable for applications in accordance with EN 50065 Cenelec specification
Carrier or preamble detection
Band in use detection
Programmable control register
Watchdog timer
8 or 16 Bit header recognition
ST7537 and ST7538 compatible
UART/SPI host interface
