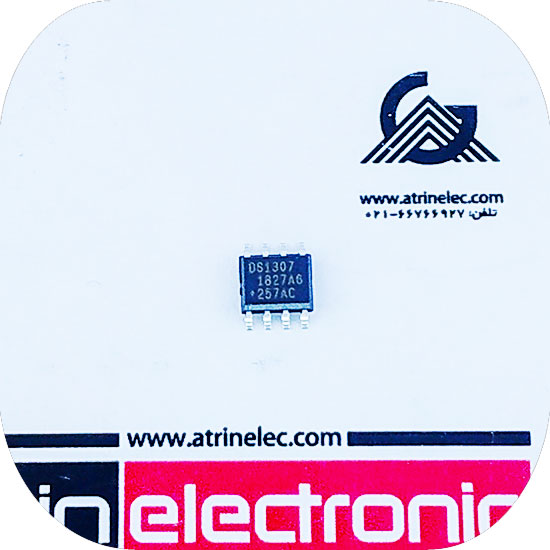

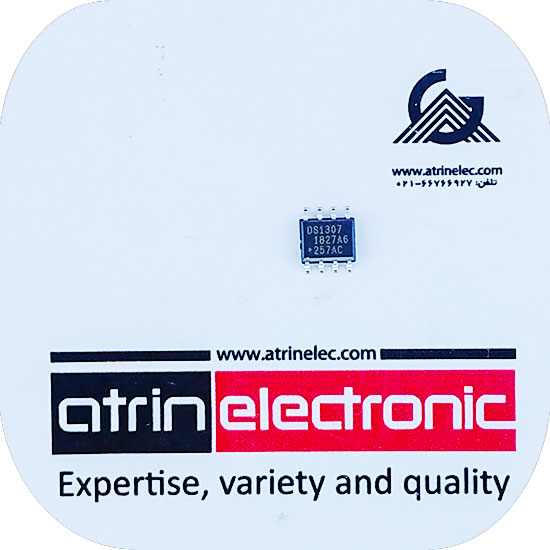

ای سی RTC یک شمارنده ساعت و تقویم است و پارامتر ثانیه،دقیقه،ساعت،روز،ماه،سال را تا سال 2100 میتواند شمارش نماید و قابلیت نصب باطری بک اپ و محاسبه مقادیر در زمان خاموشی دستگاه را دارد. 64 x 8, Serial, I2 C Real-Time Clock
FEATURES
Real-Time Clock (RTC) Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the week, and Year with Leap-Year Compensation Valid Up to 2100
56-Byte, Battery-Backed, Nonvolatile (NV) RAM for Data Storage
I 2 C Serial Interface
Programmable Square-Wave Output Signal
Automatic Power-Fail Detect and Switch Circuitry
Consumes Less than 500nA in BatteryBackup Mode with Oscillator Running
Optional Industrial Temperature Range: -40°C to +85°C
Available in 8-Pin Plastic DIP or SO
Underwriters Laboratory (UL) Recognized
