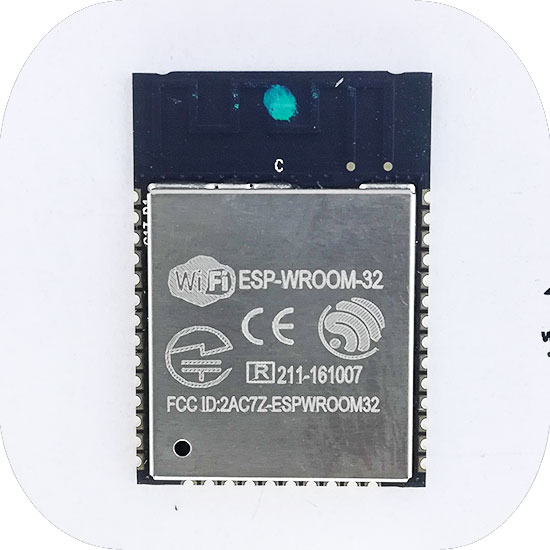

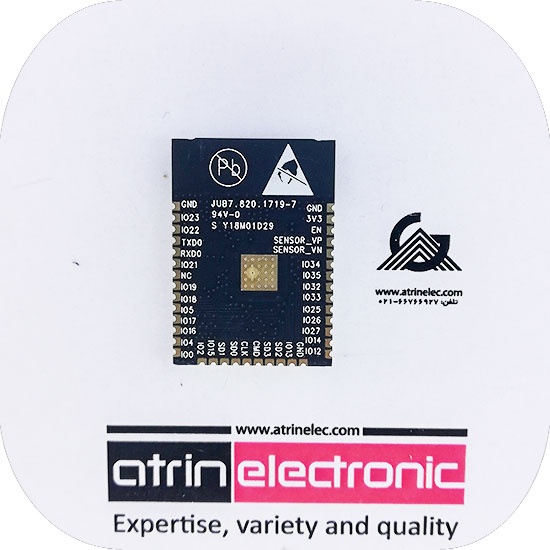

ماژول وای فای و بلوتوث با پین ورودی و خروجی ESP32 is a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip designed with the TSMC ultra-low-power 40 nm technology
Wi-Fi Key Features
802.11 b/g/n
802.11 n (2.4 GHz), up to 150 Mbps
WMM
TX/RX A-MPDU, RX A-MSDU
Immediate Block ACK
Defragmentation
(Automatic Beacon monitoring (hardware TSF
4 × virtual Wi-Fi interfaces
Simultaneous support for Infrastructure Station, SoftAP, and Promiscuous modes Note that when ESP32 is in Station mode, performing a scan, the SoftAP channel will be changed
Antenna diversity
