نقد و بررسی اجمالی
سنسور اندازه گیری دما با نور مادون قرمز - رنج اندازه گیری جسم مورد نظر از 40- تا 115+ درجه سانتی گراد - دقت اندازه گیری 0.02 سانتی گراد -

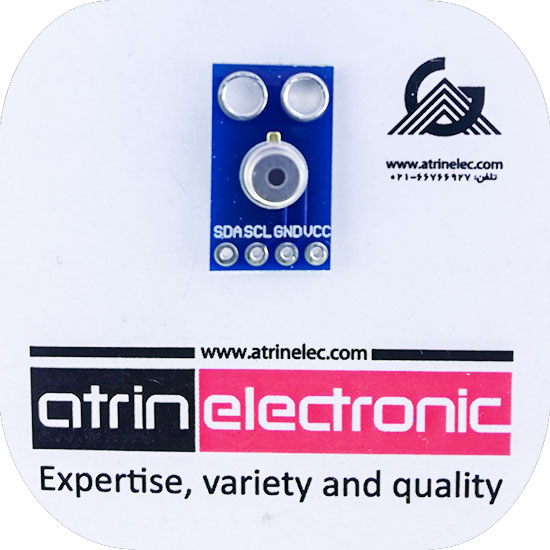

Digital Infrared Wide Temperature Sensor
دریافت دیتا شیت
Features and Benefits
Small size, low cost
Easy to integrate
Factory calibrated in wide temperature range
-40 to 85 ˚C for sensor temperature and
-40 to 115 ˚C for object temperature
(High accuracy of 0.5°C over wide temperature range (0..+50°C for both Ta and To
High (medical) accuracy calibration
Measurement resolution of 0.02°C
SMBus compatible digital interface
Power saving mode
Customizable PWM output for continuous reading
Embedded emissivity compensation
3V supply voltage
Applications Examples
High precision non-contact temperature measurements
Hand-held thermometers
Ear thermometers
Home appliances with temperature control
Healthcare
Livestock monitoring
Multiple zone temperature control – up to 100 sensors can be read via common 2 wires
