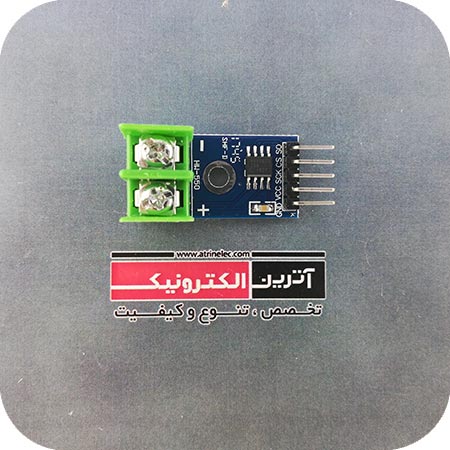

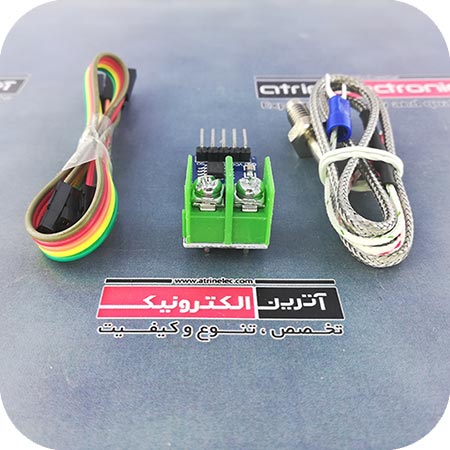

ماژول MAX6675 با ترموکوپل نوع K -خروجی دیجیتال با پروتکل SPI و دقت اندازه گیری 12 بیت در محدوده دمای 0 تا 1024 درجه سانتی گراد Cold-Junction-Compensated K-Thermocoupleto- (Digital Converter (0°C to +1024°C
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
ماژول |
سری |
دما |
تعداد پین |
7 |
ولتاژکاری |
3.3-5V |
جریان کاری |
50mA |
پروتکل ارتباطی |
SPI |
عملکرد |
اندازه گیری دما ترموکوپل نوع K |
نوع مونتاژ |
DIP |
ویژگی خاص |
رنج دمای اندازه گیری شده از 0 تا 1024 درجه |
The MAX6675 performs cold-junction compensation
and digitizes the signal from a type-K thermocouple.
The data is output in a 12-bit resolution, SPI™-compatible,
read-only format.
This converter resolves temperatures to 0.25°C, allows
readings as high as +1024°C, and exhibits thermocouple
accuracy of 8LSBs for temperatures ranging from
0°C to +700°C.
The MAX6675 is available in a small, 8-pin SO package
FEATURES
Direct Digital Conversion of Type -K
Thermocouple Output
Cold-Junction Compensation
Simple SPI-Compatible Serial Interface
12-Bit, 0.25°C Resolution
Open Thermocouple Detection
