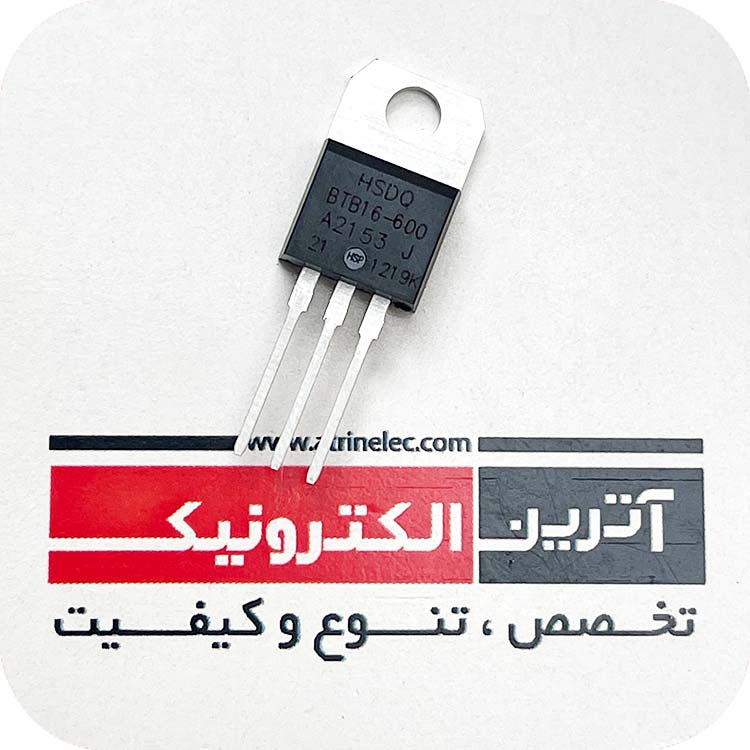

ترایاک 16 آمپر 600 ولت ،تریاک 16A ,600V, logic level and standard Triacs,TO-220
استفاده درانواع صنایع از جمله لامپ های کم مصرف
درایورهای موتور
اینورتر و مصارف عمومی
مدارات دیمر
DESCRIPTION
Available either in through-hole or surface-mount
packages, the BTA16, BTB16 and T16 triac series
is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications
such as static relays, heating regulation, induction motor starting circuits... or for phase
control operation in light dimmers, motor speed controllers
The snubberless versions (BTA/BTB...W and T16 series) are specially recommended for use on inductive
loads, thanks to their high commutation performances. By using an internal ceramic pad,
the BTA series provides voltage insulated tab (rated at 2500VRMS) complying with UL standards
(File ref.: E81734)
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
المان قطع ووصل جریان وولتاژ |
سری |
ترایاک TRIAC |
تعداد پین |
3 |
پکیج |
TO-220 |
ولتاژ کاری |
600V |
جریان کاری |
16A |
VDRM |
600V |
VDSM |
700V |
VRRM |
800V |
VRSM |
900V |
IT(RMS) |
16A |
IT(AV) |
- |
ITSM-IT(SM) |
170A |
VGT |
1.5V |
IGT |
50-100mA |
ابعاد |
10.50x15.87x4.82mm |
دمای کاری |
150+~40- |
برند |
HSDQ |
کشور سازنده |
|
کیفیت |
ارجینال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
