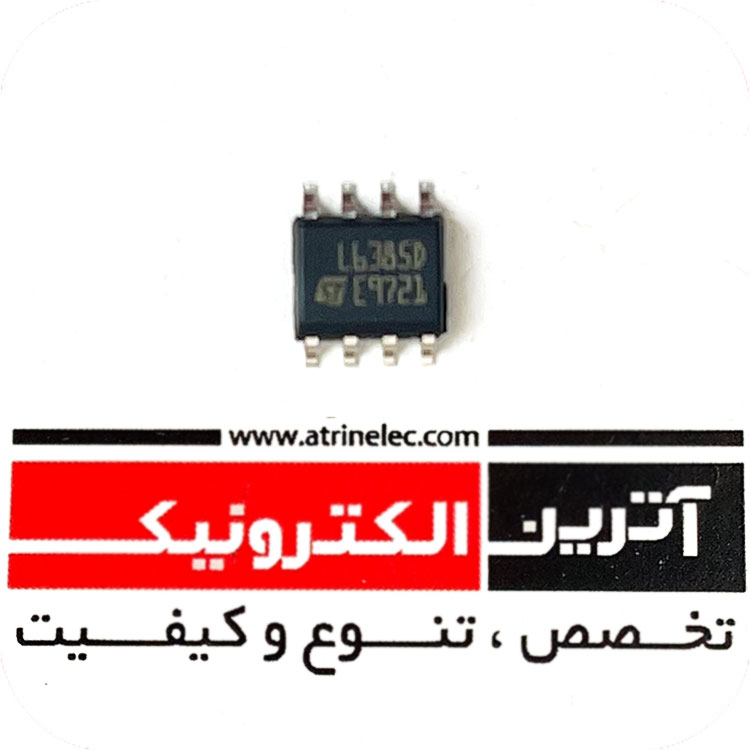

آیسی درایور ماسفت یا IGBT قسمت بالا و پایین HIGH-VOLTAGE HIGH AND LOW SIDE DRIVER
استفاده در انواع درایورهای موتور
اینورتر های ولتاژ بالا
| Product Attribute | Attribute Value | Search Similar |
|---|---|---|
| STMicroelectronics | ||
| Gate Drivers | ||
| RoHS: | N | |
| High-Side, Low-Side | ||
| SMD/SMT | ||
| SOIC-8 | ||
| 2 Driver | ||
| 2 Output | ||
| 50 ns | ||
| 30 ns | ||
| - 45 C | ||
| + 125 C | ||
| L6385 | ||
| Tube | ||
| Brand: | STMicroelectronics | |
| Logic Type: | CMOS, TTL | |
| Operating Supply Current: | 320 uA | |
| Operating Supply Voltage: | 9 V to 17 V | |
| Pd - Power Dissipation: | 750 mW | |
| Product Type: | Gate Drivers | |
| 100 | ||
| Subcategory: | PMIC - Power Management ICs | |
| Technology: | Si | |
| Unit Weight: | 124,600 mg |
HIGH VOLTAGE RAIL UP TO 600 V
dV/dt IMMUNITY +- 50 V/nsec IN FULL TEMPERATURE
RANGE
DRIVER CURRENT CAPABILITY:
400 mA SOURCE,
650 mA SINK
SWITCHING TIMES 50/30 nsec RISE/FALL
WITH 1nF LOAD
CMOS/TTL SCHMITT TRIGGER INPUTS
WITH HYSTERESIS AND PULL DOWN
UNDER VOLTAGE LOCK OUT ON LOWER
AND UPPER DRIVING SECTION
INTERNAL BOOTSTRAP DIODE
OUTPUTS IN PHASE WITH INPUTS
