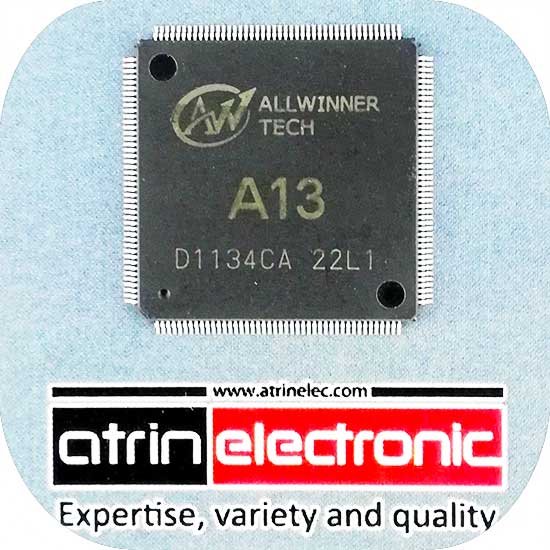

آی سی A13 یک پردازشگر تمام عیار با هسته آرم CORTEX-A8 می باشد که برای تبلت های اندرویدی مورد استفاده قرار میگیرد و دارای رابط های مختلف جهت ارتباط با ای سی،سنسور،ال سی دی،میکرو اس دی و... می باشد. Allwinner Tech has expanded its processor lineup to include a new ARM Cortex-A8 chip A13
which is even more competitive for Android tablets with higher performance (ManyCore Lite),Allwinner Tech has expanded its processor lineup to include a new ARM Cortex-A8 chip A13
lower power consumption, and lower total system cost. As the brains of Android 4.0, A13 makes
multitasking smoother, apps loading more quickly, and anything you touch responds instantly.

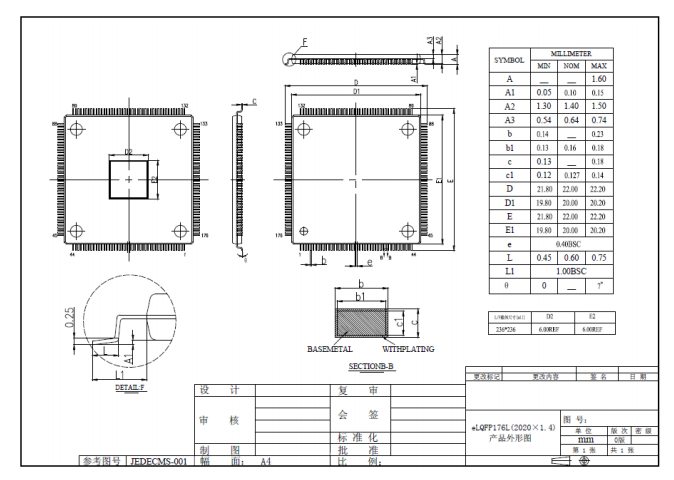

What‟s more important, A13 is available in eLQFP176 package with Audio Codec and R-TP
integrated.

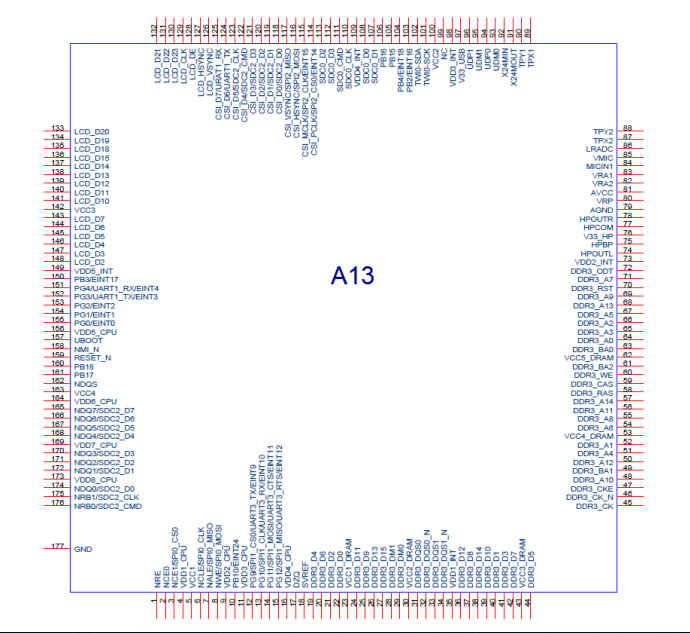

دریافت کتابخانه( ALITUM DESIGNER )

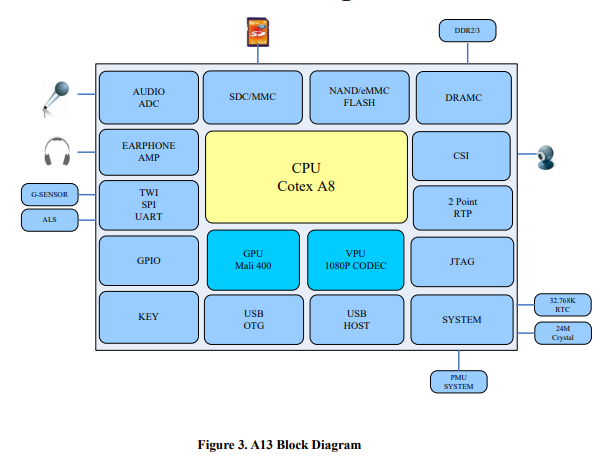

:Feature
CPU
ARM Cortex-A8 Core-
32KB I-Cache/32KB D-Cache/256KB L2 Cache-
Using NEON for video, audio, and graphic workloads eases the burden of supporting more
dedicated accelerators across the SoC and enables the system to support the standards of
tomorrow
RCT JAVA-Accelerations to optimize just in time(JIT) and dynamitic adaptive-
compilation(DAC), and reduces memory footprint up to three times
GPU
3D Graphic Engine-
Support Open GL ES 1.1/ 2.0 and open VG 1.1-
VPU
Video Decoding (FULL HD-
Support all popular video formats, including VP6/8, AVS, H.264, H.263 , MPEG-1/2/4-
Allwinner Technology CO., Ltd. A13
Support 1920*1080@ 30fps in all formats-
Video Encoding-
Support encoding in H.264 MP format-
Up to 1920*1080@30fps-
Display Processing Ability
Four moveable and size-adjustable layers-
Support multi-format image input-
Support image enhancement processor-
Support Alpha blending /anti-flicker-
Support Hardware cursor-
Support output color correction luminance / hue / saturation etc-
Display Output Ability
( Flexible LCD interface (CPU / Sync RGB-
Image Input Ability
( Camera sensor interface (CSI-
Memory
16-bit SDRAM controller-
Support DDR2 SDRAM and DDR3 SDRAM up to 533MHz-
Memory Capacity up to 512MB-
8-bit NAND Flash Controller with 2 CE and 2 RB signals-
Support SLC/MLC/TLC/DDR NAND-
64-bit ECC-
Peripherals
One USB 2.0 OTG controller for general application and one USB EHCI/OHCI controller for-
host application
Three high-speed memory controllers supporting SD version 3.0 and eMMC version 4.3-
One UART with only TX/RX and one UART with RTS/CTS-
Three SPI controllers-
Three Two-Wire Interfaces-
IR controller supporting CIR remoter-
6-bit LRADC for line control-
Internal 4-wire touch panel controller with pressure sensor and 2-point touch-
Internal 24-bit Audio Codec for 2-Ch headphone and 1-Ch microphone-
PWM controller-
System
8-Ch normal DMA and 8-Ch dedicated DMA-
Internal 48K SRAM on chip-
6 asynchronic timers, 2 synchronic timers, 1 watchdog, and 2 AVS counters-
Security
Security System-
Support DES/3DES/AES encryption and decryption-
Support SHA-1, MD5 message digest-
Support 160-bit hardware PRNG with 192-bit seed-
128-bit EFUSE chip ID-
