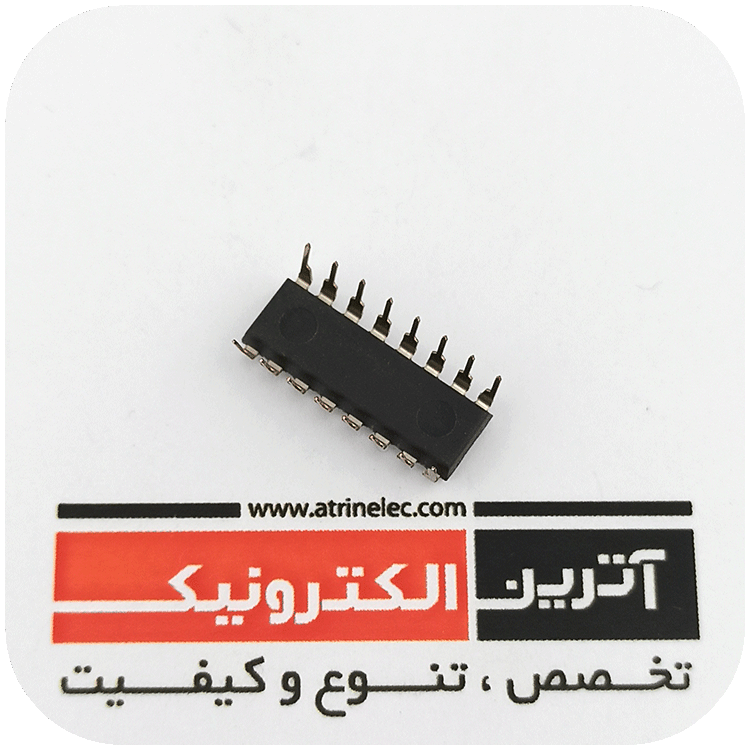

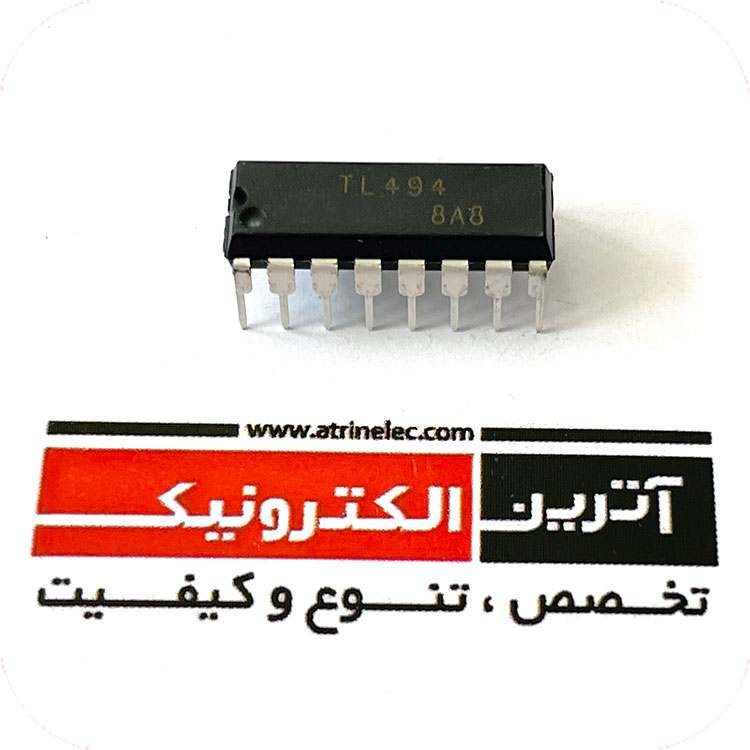

pulse-width-modulation (PWM) control,DIP-16 آیسی PWM خروجی 200 میلی آمپر اریجینال
pulse-width-modulation (PWM) control,DIP-16
آیسی PWM خروجی 200 میلی آمپر اریجینال دریافت دیتا شیت
دریافت کتابخانه( ALITUM DESIGNER )
استفاده در انواع صنایع از جمله بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....
مشخصات بیشتر:
Complete PWM Power-Control Circuitry
Uncommitted Outputs for 200-mA Sink or
Source Current
Output Control Selects Single-Ended or
Push-Pull Operation
Internal Circuitry Prohibits Double Pulse at
Either Output
Variable Dead Time Provides Control Over
Total Range
Internal Regulator Provides a Stable 5-V
Reference Supply With 5% Tolerance
Circuit Architecture Allows Easy
Synchronization
