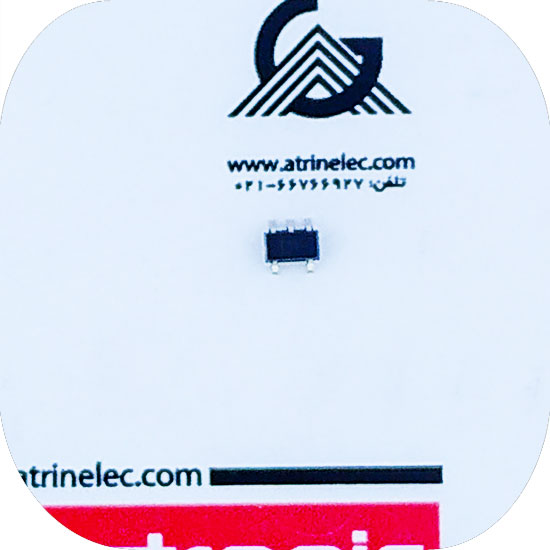

ای سی تایمر /اسیلاتور -این ای سی شبیه به ای سی معروف 555 میباشد اما بدون کنترلر فرکانس IttyBitty® RC Timer / Oscillator
Features
+2.7V to +18V operation
:Low current
200µA typical (TRG and THR low) at 3V supply
Timing from microseconds to hours
“Zero” leakage trigger and threshold inputs

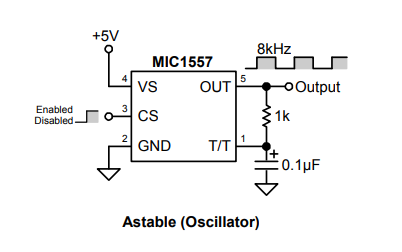

50% square wave with one Resistor, one Capacitor
Threshold input precedence over trigger input
Applications
Precision timer
Pulse generation
Sequential timing
Time-delay generation
Missing pulse detector
Micropower oscillator to 5MHz
Charge-pump driver
LED blinker
Voltage converter
Linear sweep generator
Variable frequency and duty cycle oscillator
Isolated feedback for power supplies
