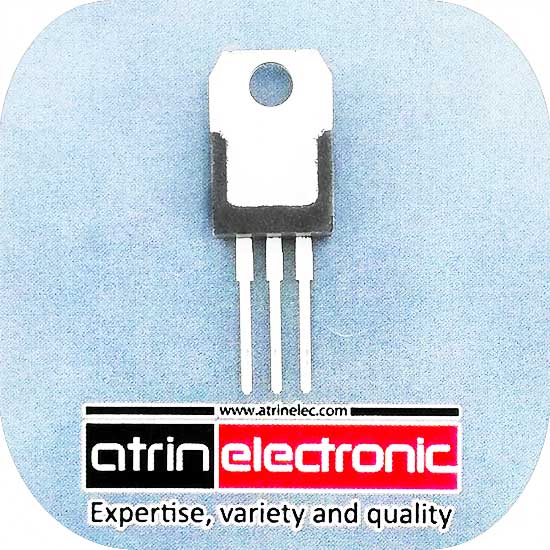

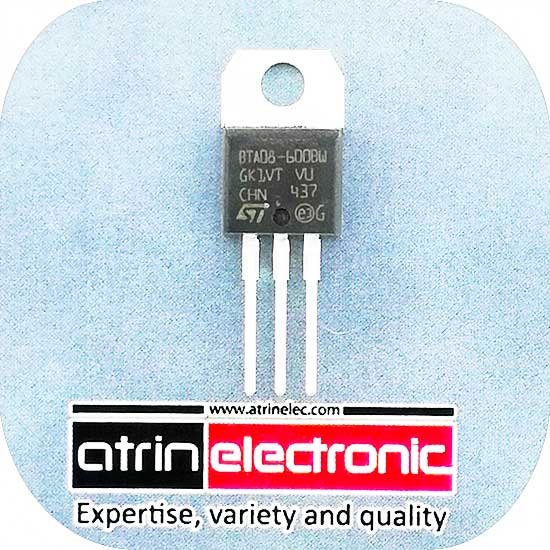

ترایاک 8 آمپر 600 ولت ،تریاک 8A ,600V, logic level and standard Triacs,TO-220
استفاده درانواع صنایع از جمله لامپ های کم مصرف - درایورهای موتور
اینورتر و مصارف عمومی
Features
On-state rms current, IT(RMS) 8 A
Repetitive peak off-state voltage, VDRM/VRRM
600 to 800 V
Triggering gate current, IGT (Q1) 5 to 50 mA
Description
Available either in through-hole or surface-mount packages, the BTA08, BTB08 and T8 triac series
is suitable for general purpose AC switching. They can be used as an ON/OFF function in
applications such as static relays, heating regulation, induction motor starting circuits... or
for phase control operation in light dimmers motor speed controllers,...
The snubberless versions (BTA/BTB...W and T8 series) are specially recommended for use on
inductive loads, thanks to their high commutation
performances
Logic level versions are designed to interface
directly with low power drivers such as microcontrollers
By using an internal ceramic pad, the BTA series
(provides voltage insulated tab (rated at 2500 VRMS) complying with UL standards (file ref.: E81734
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
المان قطع ووصل جریان وولتاژ |
سری |
ترایاک TRIAC |
تعداد پین |
3 |
پکیج |
TO-220 |
ولتاژ کاری |
600V |
جریان کاری |
8A |
VDRM |
600V |
VDSM |
- |
VRRM |
800V |
VRSM |
- |
(IT(RMS |
8A |
(IT(AV |
- |
(ITSM-IT(SM |
80A |
VGT |
1.3V |
IGT |
5-50mA |
ابعاد |
15.90x10.40x4.60mm |
دمای کاری |
125+~40- |
برند |
- |
کشور سازنده |
- |
کیفیت |
اورجیتال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
