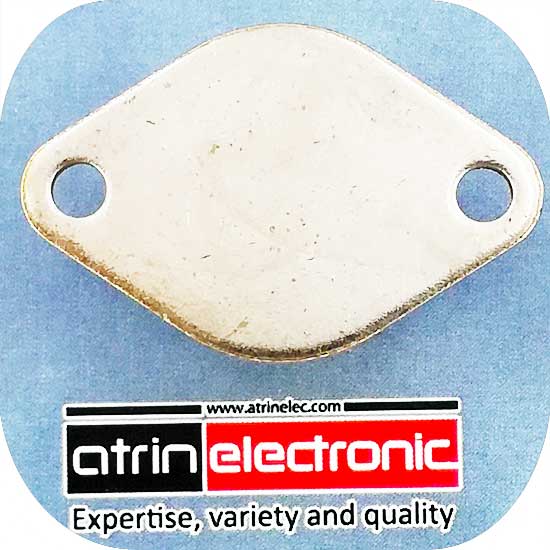

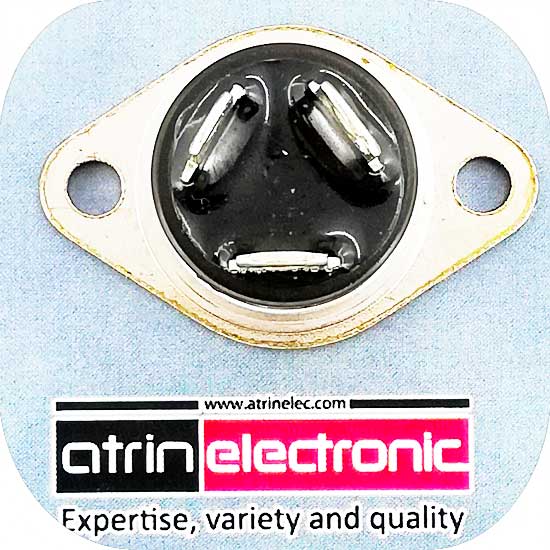

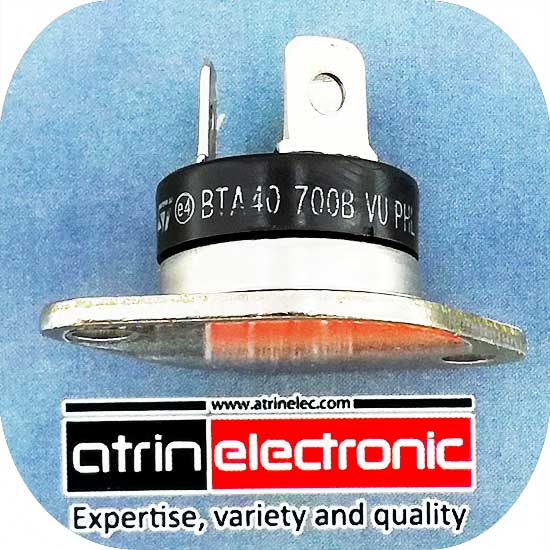

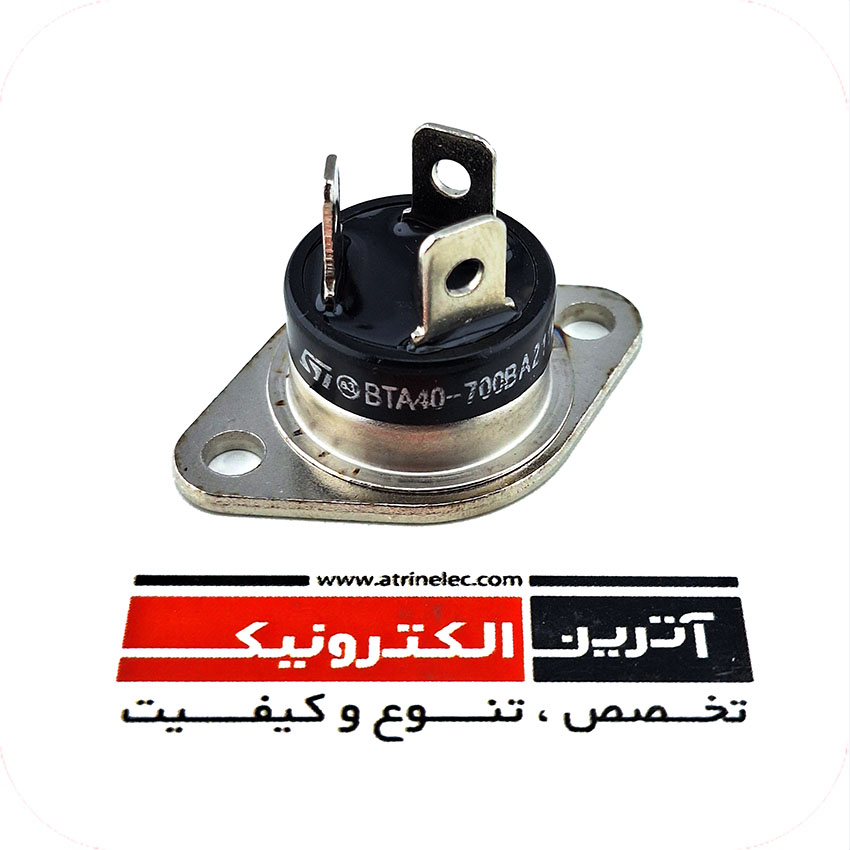

ترایاک 40 آمپر 600 ولت ،تریاک 40A ,600V, logic level and standard Triacs,RD91
استفاده درانواع صنایع از جمله لامپ های کم مصرف - درایورهای موتور
اینورتر و مصارف عمومی
Features
High current TRIAC
Low thermal resistance with clip bonding
High commutation capability
BTA series UL1557 certified (File ref: 81734)
Packages are RoHS (2002/95/EC) compliant
Applications
On/off function in static relays, heating
regulation, induction motor starting circuits
Phase control operations in light dimmers
motor speed controllers, and similar
Description
Available in high power packages, the
BTA/BTB40-41 series is suitable for general
purpose AC switching
The BTA series provides an insulated tab rated at
2500 V rms
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
المان قطع ووصل جریان وولتاژ |
سری |
ترایاک TRIAC |
تعداد پین |
3 |
پکیج |
RD91 |
ولتاژ کاری |
600V |
جریان کاری |
40A |
VDRM |
600V |
VDSM |
- |
VRRM |
800V |
VRSM |
- |
(IT(RMS |
40A |
(IT(AV |
- |
(ITSM-IT(SM |
400A |
VGT |
1.3V |
IGT |
50-100mA |
ابعاد |
40x27x14mm |
دمای کاری |
125+~40- |
برند |
- |
کشور سازنده |
- |
کیفیت |
کپی |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
