مولتیمتر کلمپی دیجیتال AC/DC -قابلیت اندازه گیری انواع پارامترها از جمله ولتاژ دقیق DC و AC -جریان AC و DC تا 400 آمپر-مقاومت-خازن-تست دیودی و اتصال کوتاه -تست برق دار بودن سیم -نگه دارنده دیتا و...
ویژگی ها :
![]() |
*اتو رنج - اندازه گیری دقیق ولتاژAC و DC-جریان AC و DC تا 400 آمپر - مقاومت-خازن |
*اندازه گیری تست دیودی و اتصال کوتاه | |
* نور پس زمینه نمایشگر - نمایش خطای باتری کم -خاموش شدن اتوماتیک | |
*تست انتشار جریان و برق در کابل یا سیمی بدون سیم |
|
*سرعت بالای نمونه برداری 2 بار در ثانیه | |
* فانگشن های مختلف و امکانات فراوان |
توضیحات بیشتر
Note: To measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying the current and ground wires. The current in two wires always flows in opposite directions, so the magnetic fields from two wires cancel each other, therefore the meter reads 0 A.
The NCV function can test the voltage without contact. When the Meter senses a weak AC signal, the green indicator light will be on and the buzzer will emit a slow, audible beep. When the Meter senses a strong AC signal, the red indicator light will be on and the buzzer will emit a brief beep
AstroAI 4000 Counts TRMS Clamp Meter
Specifications
Digital Display: 3 ¾, 4000
Sampling Speed: 3 times per second
LCD Size: 35 x 25mm
Range Selection: Auto or Manual
Polarity Indication: “ - ” Automatically displayed
Overload Indication: “OL” Displayed
Low Battery Indication
Working Environment: 32°F~104°F (0°C~40°C); <80% RH
Storage Temperature: 14°F~122°F (-10°C~6°C); <70% RH
Power: 1.5V AAA Batteries x 2 Included
Dimensions: 195x68x29mm
Weight: Approx. 205g
Safety/Compliances: CAT.III 600V; Pollution Level: 2; Altitude <2000m
DC Voltage: 400mV/4V/40V/400V/600V ±(0.5%+5)
AC Voltage: 4V/40V/400V/600V ±(1.0%+5)
DC Current: 40A/400A ±(2.5%+5)
AC Current: 40A/400A 50~60Hz : ±(2.5 +5), Other : ±(3.0% +10)
Resistance: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(1.0%+5)
Capacitance: 4nF/40nF/400nF/4μF/40μF/400μF/4mF ±(4.0%+5)
Frequency: 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz ±(1.0%+3)
Duty Cycle: 1~99% ±(3.0%+3)

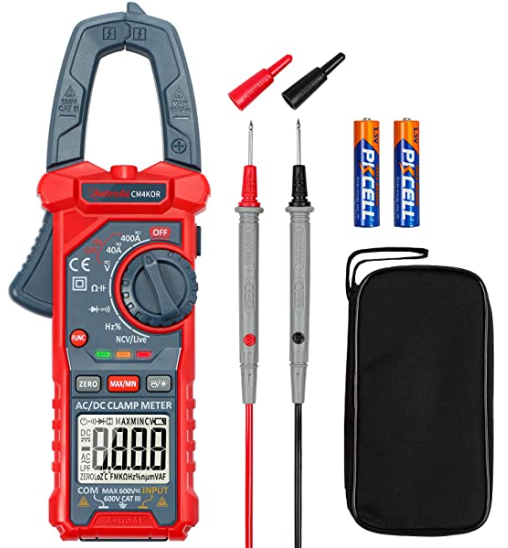

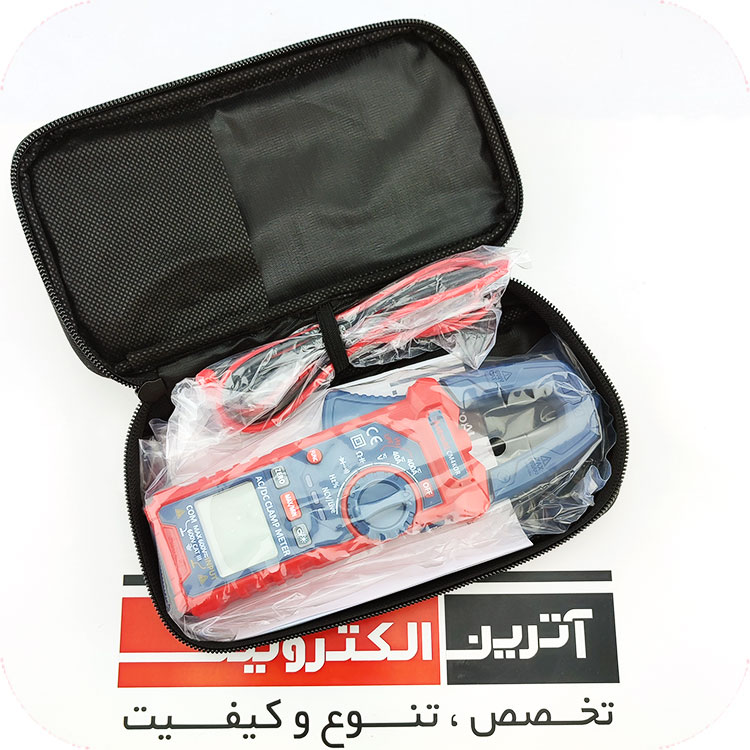

Package Includes
1 x AstroAI 4000 Counts True RMS Digital Clamp Meter
1 x Test Leads (Pair)
2 x 1.5 V AAA batteries
1 x User Manual
1 x Storage Bag
