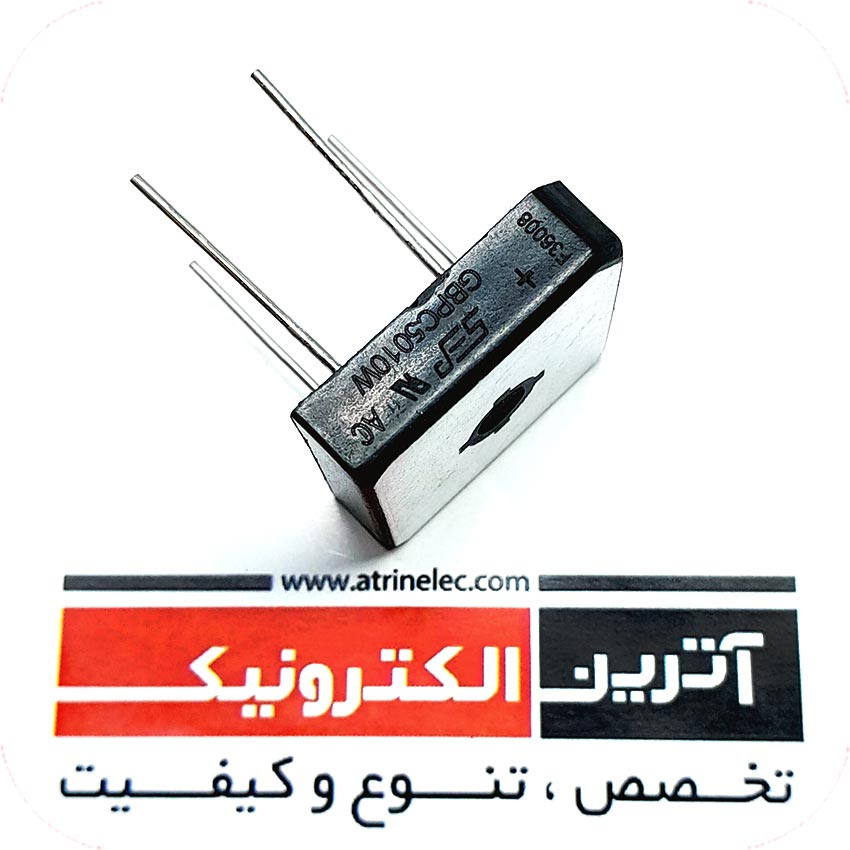

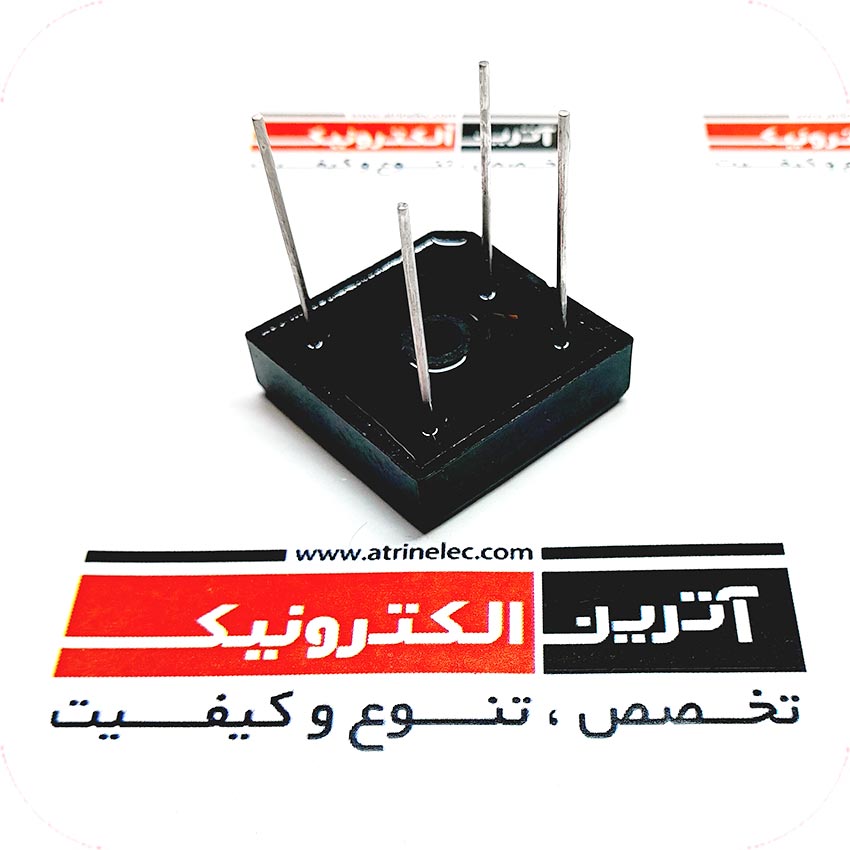

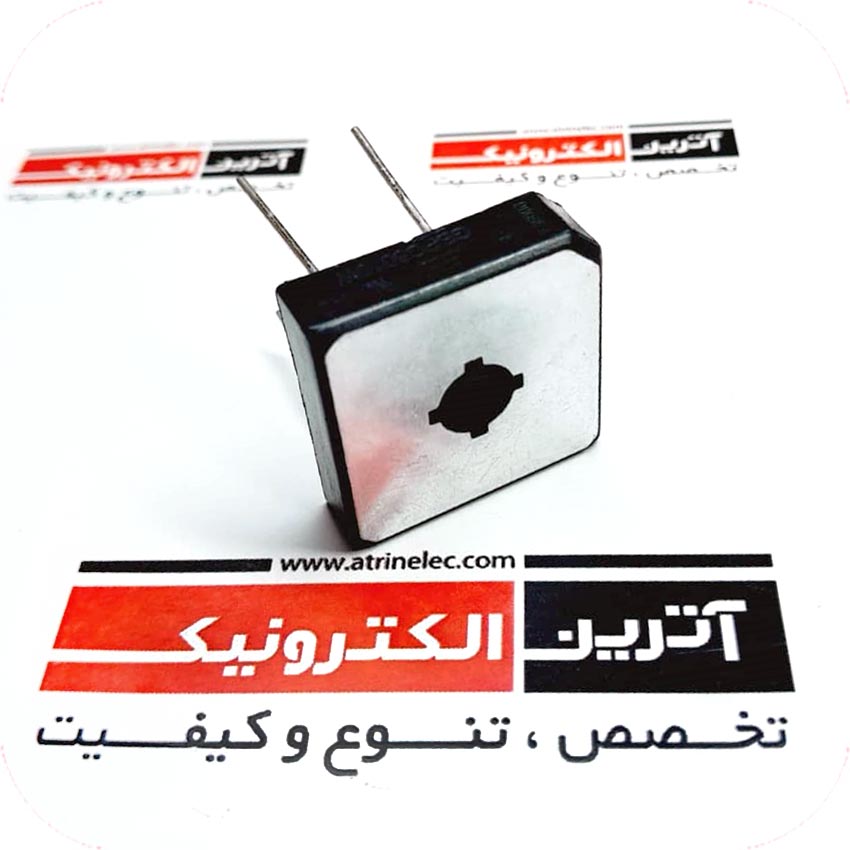

دیود پل تک فاز 1000 ولت 50 آمپر سوزنی / Single-Phase 50A 1000vGlass Passivated Bridge Rectifier
استفاده در انواع صنایع از جمله :
جوش و برش
اینورترهای دور و جریان
سوییچینگ ها
مخابراتی
GBPC50005(W)-GBPC5010(W)
Features:
Universal 3-way terminals: snap-on, wire wrap-around, or P.C.B. mounting
Typical IR less than 0.3 μA
High surge current capability
Low thermal resistance
Solder Dip 260 °C, 40 seconds
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
This is a Pb − Free Device
All SMC Parts are Traceable to the Wafer Lot
Additional testing can be offered upon request
Mechanical Data:
Case: GBPC, GBPC-W, Molded plastic
Terminals: Nickel plated on faston lugs or Silver plated on wire leads, solderable per J-STD-
002B and JESD22-B102D. E4 suffix for commercial grade. Suffix letter "W" added to indicate
wire leads (e.g.GBPC15005W).
Polarity: As marked, positive lead by belevled corner
Mounting Position: Any
Marking: Type Number
Mounting Torque: 20 inches-lbs. max.
ویژگی |
مقادیر |
خانواده |
دیود |
سری دیود |
پل دیود |
تعداد پین | 4 |
پکیج |
- |
ولتاژکاری |
1000V |
جریان کاری |
50A |
توان |
- |
VZ |
- |
VRRM | 1000V |
VRMS |
700v |
VDC |
- |
VF |
- |
(IF(AV)-I(AV |
50A |
IFRM |
- |
IFSM |
- |
(IR(25°C |
- |
(IR(HIGH TEMP |
- |
CJ |
- |
Trr |
- |
ابعاد |
- |
دمای کاری |
125+~65- |
برند |
OTHER |
کشور سازنده |
- |
کیفیت |
خوب |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
