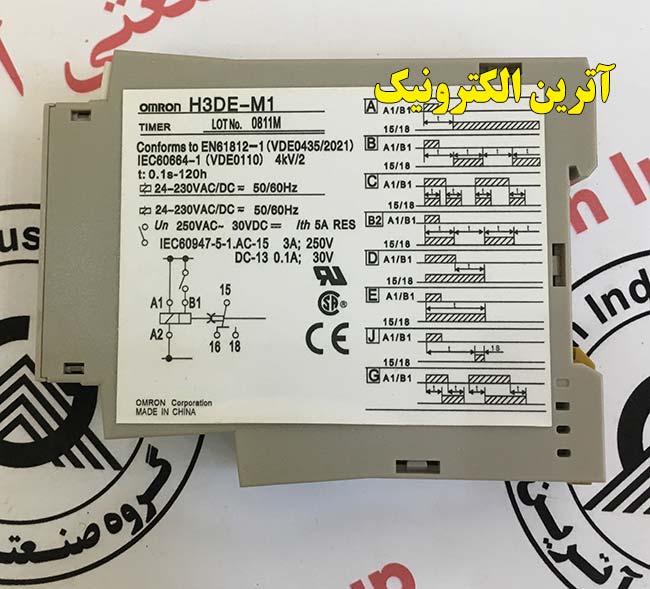

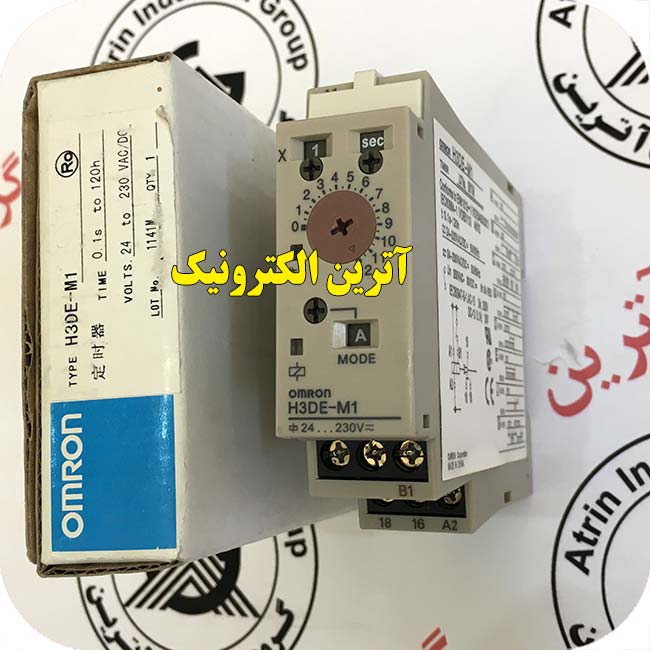

تایمر امرن اریجینال 0.1 ثانیه تا 120 ساعت OMRON Multi Function Time Delay Relay, Clamp, 0.1 s → 120 h, 1 Contacts, 24 → 230 V ac/dc
تایمر امرن اریجینال 0.1 ثانیه تا 120 ساعت
OMRON Multi Function Time Delay Relay, Clamp, 0.1 s → 120 h, 1 Contacts, 24 → 230 V ac/dc
Multiple time ranges and operating modes
UL, CSA.
Conforms to EN61812-1, EN50081-1, EN50082-1, IEC 60947-5-1, IEC60664-1, EMC.
UL, CSA. Conforms to EN61812-1, EN50081-1, EN50082-1, IEC 60947-5-1, IEC60664-1, EMC. CE compliant
| Supply Voltage | 24 → 230 V ac/dc | |
| Time Range | 0.1 s → 120 h | |
| Mode of Operation | Flicker OFF Start, Flicker ON Start, Interval, ON Delay, One Shot, Signal OFF Delay, Signal ON/OFF Delay | |
| Mounting Type | DIN Rail | |
| Number of Timer Functions | Multi Function | |
| Number of Contacts | 1 | |
| Time Increment | Hours, Seconds | |
| Power Supply | External | |
| Current Maximum | 5 A | |
| Terminal Type | Clamp | |
| Maximum Voltage | 30 V dc, 250 V ac | |
| Depth | 100mm | |
| Length | 79mm | |
| Width | 22.5mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +55°C |
