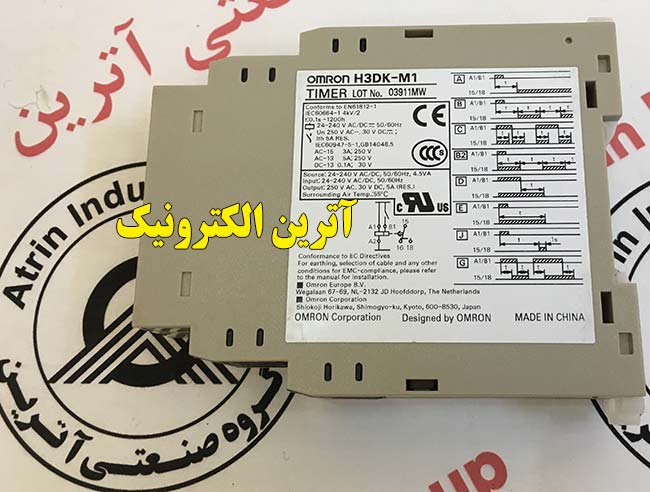

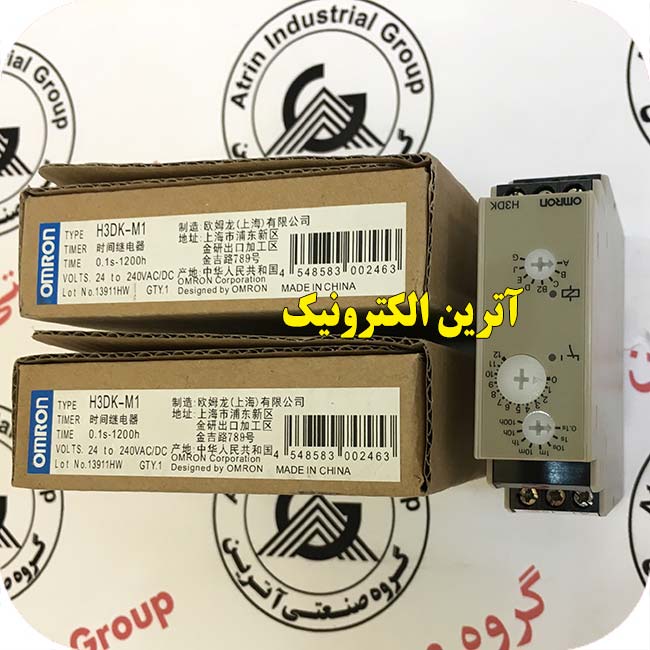

تایمر امرن اریجینال 0.1 ثانیه تا 1200 ساعت OMRON Multi Function Timer Relay, Screw, 0.1 s → 1200 h, SPDT, SPDT, 24 → 240 V ac/dc
تایمر امرن اریجینال 0.1 ثانیه تا 1200 ساعت
OMRON Multi Function Timer Relay, Screw, 0.1 s → 1200 h, SPDT, SPDT, 24 → 240 V ac/dc
Multiple time ranges and operating modes let you cover a wide range of applications
The time limit DPDT output contacts can be changed to time limit SPDT and instantaneous SPDT output contacts using a switch Sequence checks are easily performed by setting an instantaneous output to zero
Start signal control for the H3DK-M
DIN rail track mounting
Power reset: Minimum power-OFF time: 0.1 s
Insulation resistance: 100 MΩ min. at 500 Vdc
Protection class rating: IP30 (Terminal block: IP20)
CE, cURus, CCC, LR
| Supply Voltage | 24 → 240 V ac/dc | |
| Time Range | 0.1 s → 1200 h | |
| Mode of Operation | Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output | |
| Mounting Type | DIN Rail | |
| Number of Timer Functions | Multi Function | |
| Series | H3DK | |
| Time Increment | Hours, Minutes, Seconds | |
| Contact Configuration | SPDT | |
| Current Maximum | 5 A | |
| Terminal Type | Screw | |
| Minimum Voltage | 24 V | |
| Maximum Voltage | 30 V dc, 250 V ac | |
| Width | 22.5mm | |
| Depth | 100mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| Switch Configuration | SPDT | |
| Length | 89.4mm | |
| CAD Drawing | 3D CAD Model |
