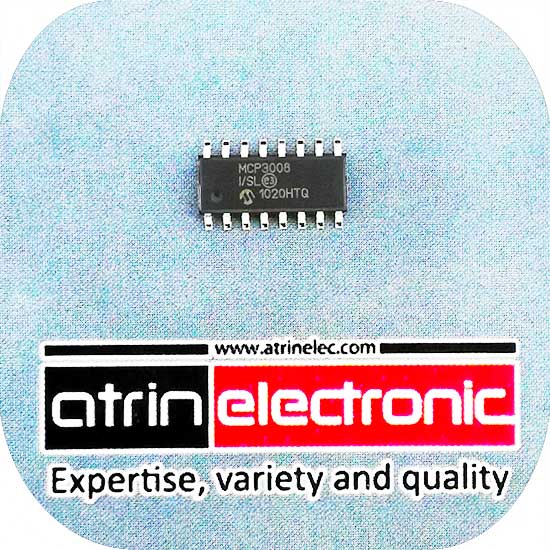

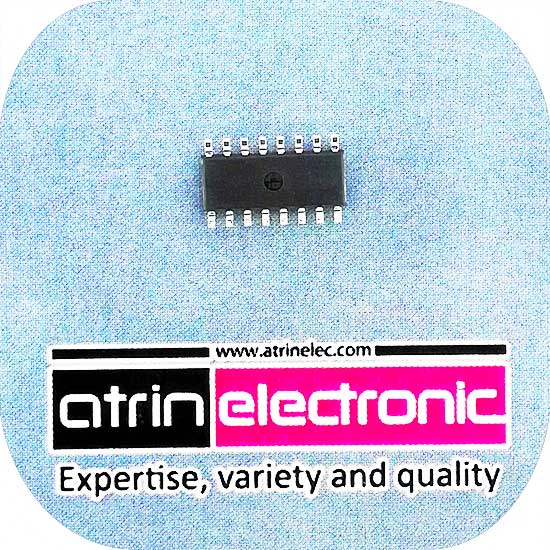

مبدل DAC ، تبدیل سیگنال دیجیتال 10 بیت به سیگنال آنالوگ،با رابط SPI ، ولتاژ کاری 2.7 تا 5.5 ولت ،8 کانال 2.7V 8-Channel 10-Bit A/D Converters with SPI™ Serial Interface
دریافت دیتا شیت
موارد مصرف:
استفاده در انواع صنایع از جمله بردهای مبدل انالوگ به دیجیتال
مخابراتی
مدارات مبدل سیگنال
Features
10-bit resolution
± 1 LSB max DNL
± 1 LSB max INL

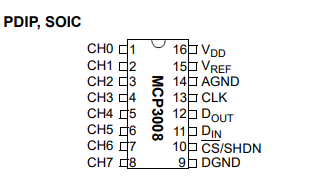

8 MCP3008) input channels)
Analog inputs programmable as single-ended or pseudo-differential pairs
On-chip sample and hold
( SPI serial interface (modes 0,0 and 1,1
Single supply operation: 2.7V - 5.5V
200 ksps max. sampling rate at VDD = 5V
75 ksps max. sampling rate at VDD = 2.7V
Low power CMOS technology
nA 5 typical standby current, 2 μA max
500 μA max. active current at 5V
Industrial temp range: -40°C to +85°C
