جایگزین اپ امپ 741،پهنای باند 1 مگاهرتز و ولتاژ کاری 18± ولت،دارای چهار اپ امپ
FEATURES
741 Op Amp Operating Characteristics
Class AB Output Stage—No Crossover Distortion

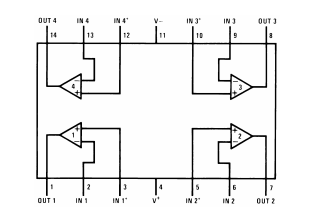

Pin Compatible With the LM124
Overload Protection for Inputs and Outputs
Low Supply Current Drain: 0.6 mA/Amplifier
Low Input Offset Voltage: 1 mV
Low Input Offset Current: 4 nA
Low Input Bias Current 30 nA achieved
High Degree of Isolation Between Amplifiers: 120 dB coupling
Gain Bandwidth Product LM148 (Unity Gain): 1.0 MHz
