ماسفت دوبل NAND - SN75372 is a dual NAND gate interface circuit designed to drive power MOSFETs from TTL inputs
Dual Circuits Capable of Driving
High-Capacitance Loads at High Speeds
• Output Supply Voltage Range up to 24 V
• Low Standby Power Dissipation
description

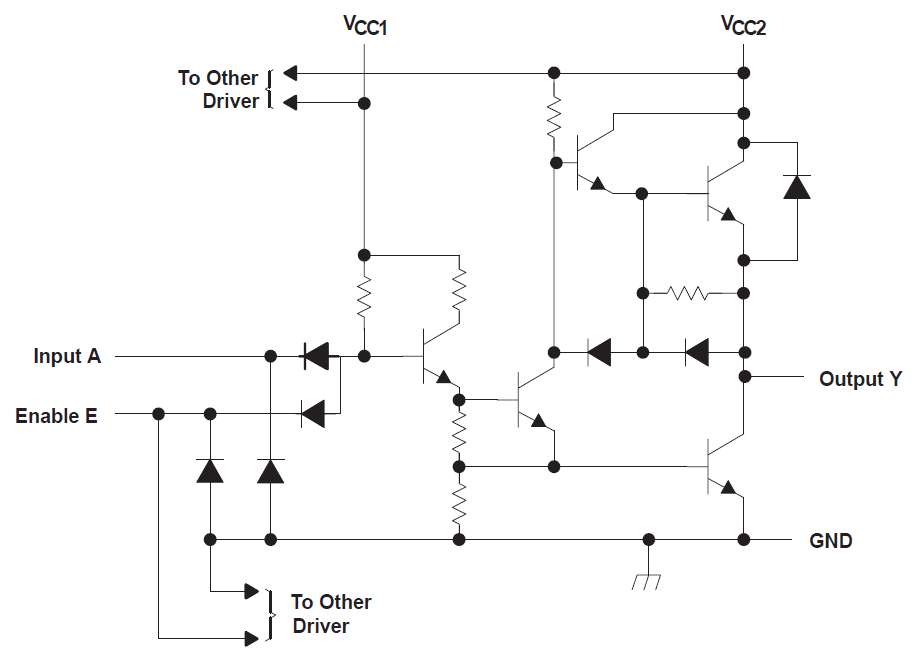

The SN75372 is a dual NAND gate interface
circuit designed to drive power MOSFETs from
TTL inputs. It provides high current and voltage
levels necessary to drive large capacitive loads at
high speeds. The device operates from a VCC1 of
5 V and a VCC2 of up to 24 V.
The SN75372 is characterized for operation from
0°C to 70°C.
