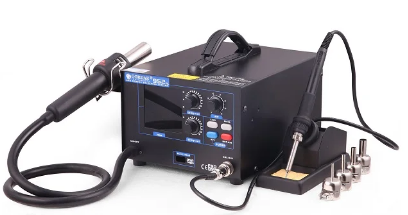

هویه 60 وات با کنترل دمای بین 200 تا 480 درجه سانتیگراد-هیتر 270 وات کنترل دمای بین 100 تا 500 درجه سانتیگراد و جریان باد دهی 120 لیتر در دقیقه/ پورت USB / کنترل دستگاه با میکروکامپیوتر و..
GORDAK INSTRUMENT
مشخصات و ویژگی ها :
|
نمایشگر دوبل دیجیتال
|
کنترل ترموستاتیک هوشمند بوسیله میکروکامپیوتر، پمپ هوا بیش از تریگرهای صفر، تنظیم سرعت باد PWM، فشار باد بالا، مناسب برای فرآیندهای مختلف جوشکاری. | |
عملکرد فعال و غیر فعال اتوماتیک | |
هیتر قدرتمند و طول عمر بالای A1321 | |
دکمه تنظیم دمای قفل شونده | |
تست خودکار عملکرد صحیح دستگاه و عیب یابی اتوماتیک | |
طول عمر بالا | |
پورت USB خروجی با جریان دهی قوی 800 میلی امپر |
* ESD safe by design. * The hot air station and soldering station use big LED double digital display, with a big power heater, heat quickly. * Air pump over zero triggers, PWM wind speed regulation, high wind pressure
Model |

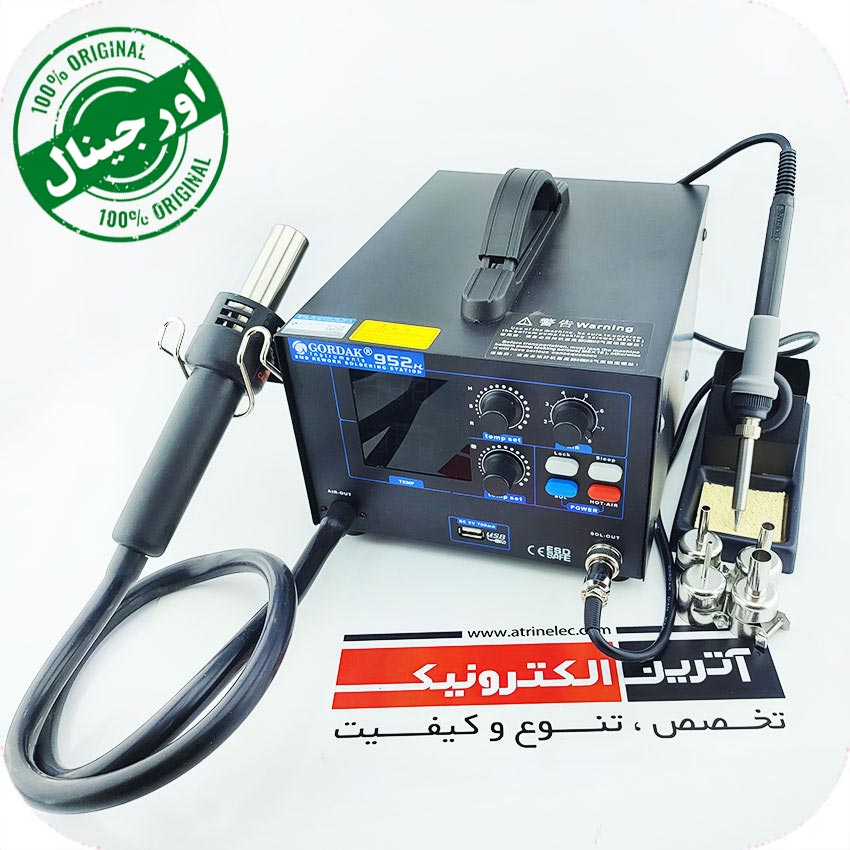

GORDAK 952H |
Hot air station |
|
Rate of Vol. |
220V 50/60Hz AC |
Power |
270 (W) |
Pump |
Membranous |
Air flow |
120L/min (max) |
Pump power |
45W |
Temp.control |
100℃-500℃ |
Noise |
<45db |
Soldering station |
|
Power |
60(W) |
Output Volt. |
24V AC |
Temp.control |
200℃-480℃ |
Ground potential |
< 2mV |
Ground Resistance |
< 200mΩ |
Heater |
Ceramic |
Packing |
6PCS/CTN |
Size |
59.5*32*54.5cm/CTN |
G.W |
30.4KG/CTN |
LED double digital display*
Microcomputer sensor closed intelligent thermostatic control design, air pump over zero triggers, PWM wind speed regulation, high wind pressure, suitable for different welding processes
The handle has a dormant sensor and has this function select button. When choose the dormant function, put the handle in the stand or outlet upward, will automatically go to the dormant mode when no use. If no select this function, no this function.
use long lift heater A1321 with big power.
temperature setting button has a locked function to prevent others change the temperature without authorization.
With the trouble test itself and indicate function.
The machine has DC 5V, 800mA USB charge could charge the equipment which matches this condition.
thermostatic
