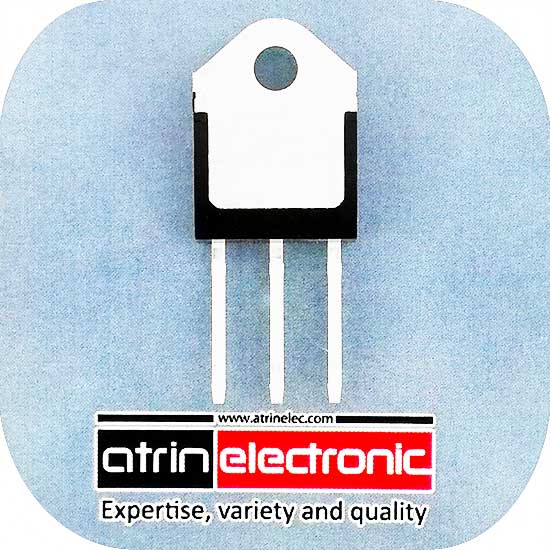

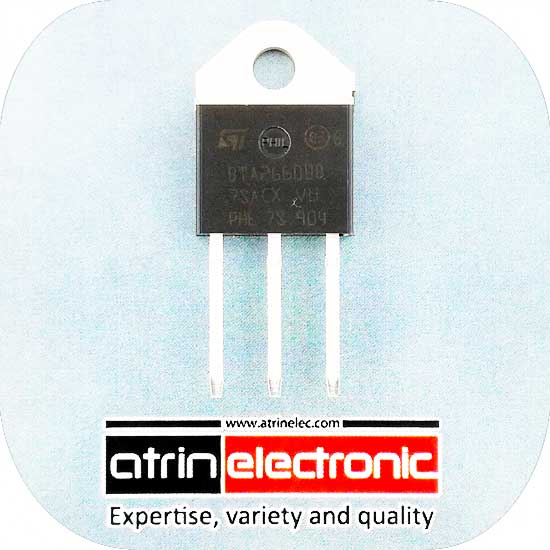

ترایاک 25 آمپر 600 ولت،تریاک 25A ,600V, logic level and standard Triacs,TO-3P
استفاده درانواع صنایع از جمله لامپ های کم مصرف - درایورهای موتور
اینورتر و مصارف عمومی
Features
On-state rms current, IT(RMS) 8 A
Repetitive peak off-state voltage, VDRM/VRRM
600 to 800 V
Triggering gate current, IGT (Q1) 5 to 50 mA
Description
Available either in through-hole or surface-mount
packages, the BTA08, BTB08 and T8 triac series
is suitable for general purpose AC switching. They
can be used as an ON/OFF function in
applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers motor speed controllers
The snubberless versions (BTA/BTB...W and T8 series) are specially recommended for use on
inductive loads, thanks to their high commutation
performances
Logic level versions are designed to interface
directly with low power drivers such as
microcontrollers
By using an internal ceramic pad, the BTA series
provides voltage insulated tab rated at 2500
(VRMS) complying with UL standards (file ref.:E81734)
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
المان قطع ووصل جریان وولتاژ |
سری |
ترایاک TRIAC |
تعداد پین |
3 |
پکیج |
TO-3P |
ولتاژ کاری |
600V |
جریان کاری |
25A |
VDRM |
600V |
VDSM |
- |
VRRM |
800V |
VRSM |
- |
(IT(RMS |
25A |
(IT(AV |
- |
(ITSM-IT(SM |
250A |
VGT |
1.3V |
IGT |
35-50mA |
ابعاد |
21.1x15.5x4.60mm |
دمای کاری |
125+~40- |
برند |
- |
کشور سازنده |
- |
کیفیت |
اورجیتال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
