میکروکنترلر 8 بیت اتمل با فلش 32 کیلو بایت - 8Bit Microcontroller with 32K Bytes In-System Programmable Flash TQFP-32 ,ATMEL ATMEGA328P-AU/اتمگا238/میکروAVR

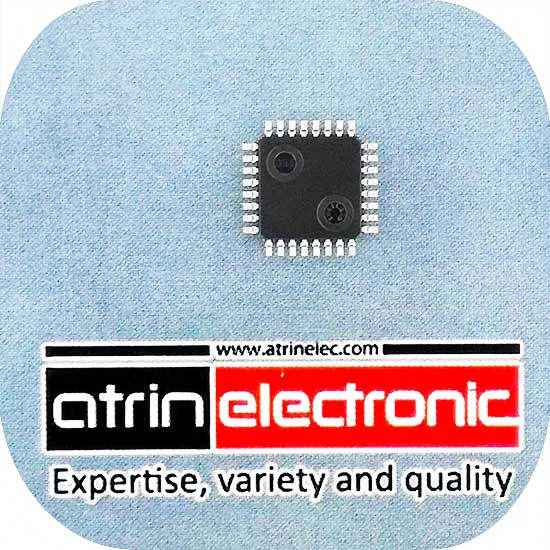

ATMEGA328P-AU
میکروکنترلر 8 بیت اتمل
8Bit Microcontroller with 32K Bytes In-System
Programmable Flash
TQFP-32 ,ATMEL
میکروکنترلر اتمل
دریافت کتابخانه( ALITUM DESIGNER )
مشخصات بیشتر:
امکانات Features |
ATMEGA |
(ATMEGA(L |
(ATMEGA(A |
VCC |
4.5-5.5V |
2.7-5.5V |
2.7-5.5V |
FREQUENCY |
0-20MHZ |
0-8MHZ |
0-20MHZ |
FLASH |
32Kbyte |
32Kbyte |
32Kbyte |
EEPROM |
1KByte |
1KByte |
1KByte |
SRAM |
2Kbyte |
2Kbyte |
2Kbyte |
TIMER-COUNTER |
TWO 8Bit ONE 16Bit |
TWO 8Bit ONE 16Bit |
TWO 8Bit ONE 16Bit |
PWM |
6 |
6 |
6 |
(ADC (10 BIT |
8channel |
8channel |
8channel |
SPI |
1 |
1 |
1 |
I2C |
1 |
1 |
1 |
UART |
1 |
1 |
1 |
SLEEP MODE |
6 |
6 |
6 |
WATCHDOG |
YES |
YES |
YES |
RTC |
پشتیبانی میکند |
پشتیبانی میکند |
پشتیبانی میکند |
PLL |
- |
- |
- |
DMA |
- |
- |
- |
DAC |
- |
- |
- |
:Features
High Performance, Low Power AVR® 8-Bit Microcontroller
Advanced RISC Architecture
131 Powerful Instructions – Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
Up to 20 MIPS Throughput at 20 MHz
On-chip 2-cycle Multiplier
High Endurance Non-volatile Memory Segments
4/8/16/32K Bytes of In-System Self-Programmable Flash program memory
256/512/512/1K Bytes EEPROM
512/1K/1K/2K Bytes Internal SRAM
Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
(Data retention: 20 years at 85°C/100 years at 25°C(1
Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
Programming Lock for Software Security
Peripheral Features
Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
Real Time Counter with Separate Oscillator
Six PWM Channels
8-channel 10-bit ADC in TQFP and QFN/MLF package
Temperature Measurement
6-channel 10-bit ADC in PDIP Package
Temperature Measurement
Programmable Serial USART
Master/Slave SPI Serial Interface
( Byte-oriented 2-wire Serial Interface (Philips I2 C compatible
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
Interrupt and Wake-up on Pin Change
Special Microcontroller Features
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated Oscillator
External and Internal Interrupt Sources
Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby,
and Extended Standby
I/O and Packages
23 Programmable I/O Lines
28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF
Operating Voltage:
– 1.8 - 5.5V
Temperature Range:
-40°C to 85°C
Speed Grade:
0 - 4 MHz@1.8 - 5.5V, 0 - 10 MHz@2.7 - 5.5.V, 0 - 20 MHz @ 4.5 - 5.5V
Power Consumption at 1 MHz, 1.8V, 25°C
Active Mode: 0.2 mA
Power-down Mode: 0.1 µA
Power-save Mode: 0.75 µA (Including 32 kHz RTC)
