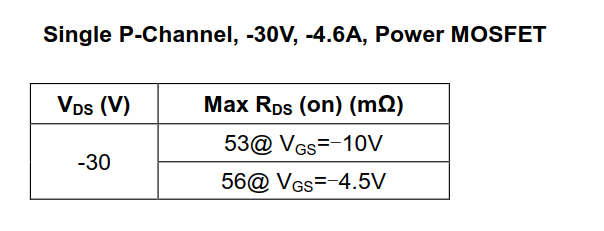

ماسفت تک 30 ولت ، 4.6 آمپر ،کانال P ،مقاومت درین سورس 53 میلی اهم P-Channel logic enhancementSingle P-Channel, -30V, -4.6A, Power MOSFET
Descriptions
The WPM3401 is the P-Channel logic enhancement
mode power field effect transistors are produced using
high cell density, DMOS trench technology. This high
density process is especially tailored to minimize onstate resistance. These devices are particularly suited
for low voltage application, notebook computer power
management and other battery powered circuits where
high-side switching.
Features
Trench Technology
Supper high density cell design
Excellent ON resistance for higher DC current
Small package SOT-23-3L
Applications
Power Management in Note book
Portable Equipment
Battery Powered System
DC/DC Converter
Load Switch
