سی پی یو امرن (شبکه ) DeviceNet Networking Computer Interface, 10000 Steps Program Capacity, 5 V dc
سی پی یو امرن (شبکه )
DeviceNet Networking Computer Interface, 10000 Steps Program Capacity, 5 V dc

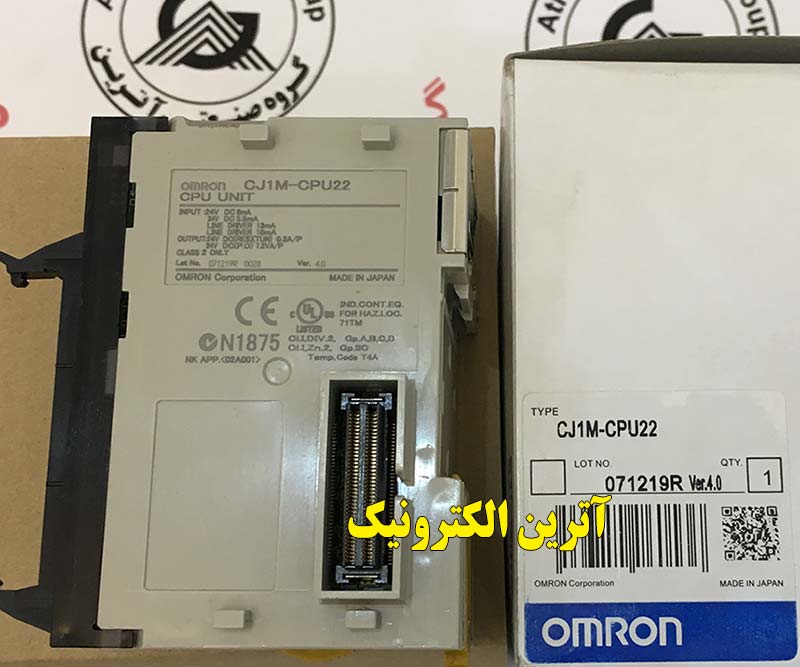

Controllers CPU CJ1M 20k PR OG w/pls HSCV3
As the CJ1M-CPU1, but also includes 10 x 24Vdc/line driver inputs and 6 x 5-24Vdc NPN outputs (300mA per point) built-in. This built-in I/O can be configured for use as 2 x 100kHz pulse input & output ports, ideal for applications requiring servo/stepper positioning functions.
2 x RS-232 ports
Compact Flash card slot
The CJ1M is a powerful and compact PLC family, covering applications requiring up to 640 I/O. CPU models are available with built in pulse outputs for stepper or servo control, and all CPUs in the CJ1M family enjoy optional modules for many types of I/O and communications. The CJ1M is the next generation of PLC from the earlier CQM1 series, and program compatibility eases migration between them.As with other Omron PLCs, the CJ1M series is programmed with CX-Programmer (RS stock no. 400-6440), designed for compliance with IEC61131-3. The backplane-less construction of the CJ1M series makes selection and installation simple; choose the CPU and power supply unit, then the I/O modules to suit the application. These items are simply plugged together end to end and then mounted on DIN rail
| For Use With | SYSMAC CJ Series | |
| Number of I/O | 320 | |
| Manufacturer Series | CJ1M | |
| Voltage Category | 5 V dc | |
| Network Type | DeviceNet | |
| Communication Port Type | Host Link, RS232C | |
| Program Capacity | 10000 Steps | |
| Programming Interface | Computer | |
| Width | 48.75mm | |
| Number of Communication Ports | 2 | |
| Depth | 83.6mm | |
| Minimum Operating Temperature | 0°C | |
| Total Memory Available | 10000 Steps, 32000 (Data Memory) Words | |
| Mounting Type | DIN Rail | |
| Programming Language Used | Ladder Logic, SFC, ST | |
| Battery Backup | Yes | |
| Scan Time | 0.1 (Execution Time) μs | |
| Maximum Inputs/Outputs | 320 | |
| Length | 90mm | |
| Maximum Operating Temperature | +55°C | |
| Dimensions | 90 x 48.75 x 83.6 mm |
