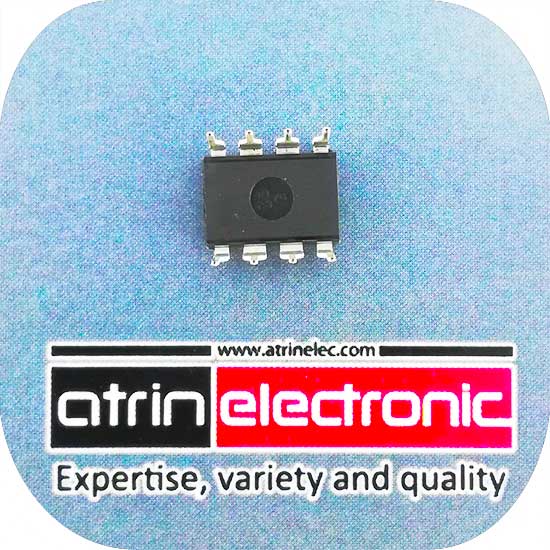

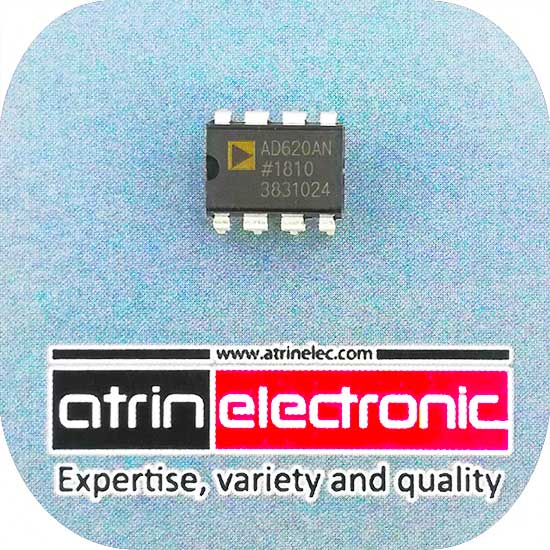

ای سی تقویت کننده،امپلی فایر،اپ امپ ابزار دقیق ،گین 1 تا 1000 ،در گین 100 دارای پهنای باند 120 کیلو هرتز می باشد. Low Cost, Low Power Instrumentation Amplifier
FEATURES
EASY TO USE
(Gain Set with One External Resistor (Gain Range 1 to 1000
(Wide Power Supply Range (2.3 V to 18 V
Higher Performance than Three Op Amp IA Designs

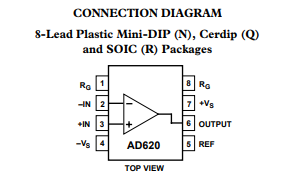

Available in 8-Lead DIP and SOIC Packaging
Low Power, 1.3 mA max Supply Current
(EXCELLENT DC PERFORMANCE ( B GRADE
50 mV max, Input Offset Voltage
0.6 mV/8C max, Input Offset Drift
1.0 nA max, Input Bias Current
100 (dB min Common-Mode Rejection Ratio (G = 10
LOW NOISE
9 nV/√Hz, @ 1 kHz, Input Voltage Noise
(0.28 mV p-p Noise (0.1 Hz to 10 Hz
EXCELLENT AC SPECIFICATIONS
120 (kHz Bandwidth (G = 100
15 ms Settling Time to 0.01%
APPLICATIONS
Weigh Scales
ECG and Medical Instrumentation
Transducer Interface
Data Acquisition Systems
Industrial Process Controls
Battery Powered and Portable Equipment
