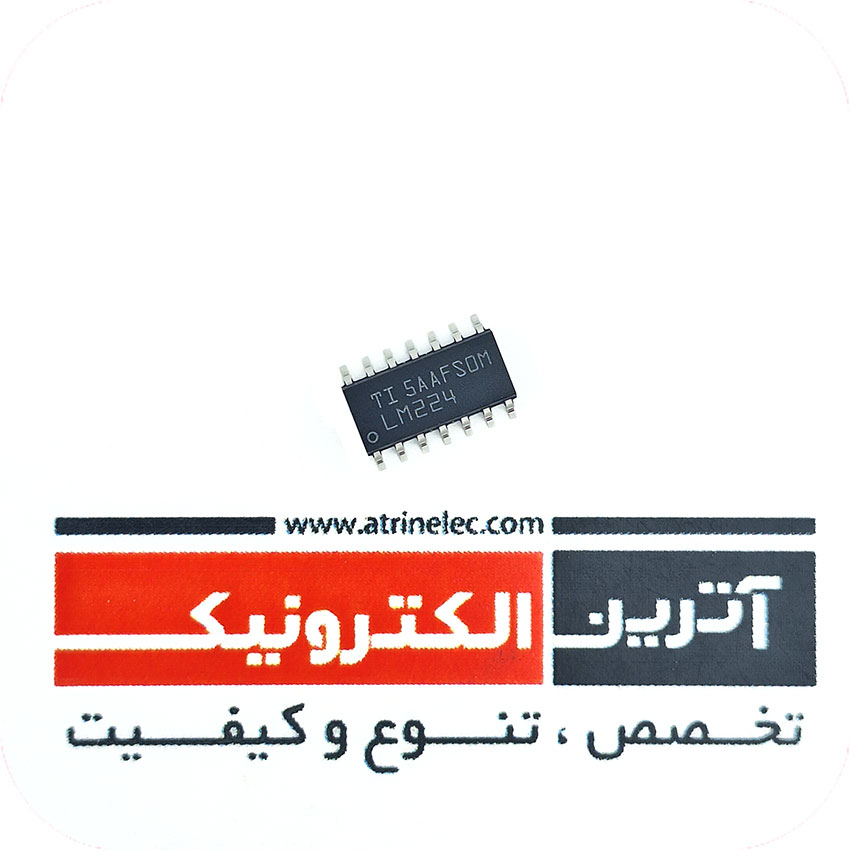

ای سی تقویت کننده،اپ امپ 4 تایی با پهنای باند 1.3 مگاهرتز و ولتاژ کاری 32 ولت LOW POWER QUAD OPERATIONAL AMPLIFIERS
. WIDE GAIN BANDWIDTH : 1.3MHz
. INPUT COMMON-MODE VOLTAGE RANGE
INCLUDES GROUND
. LARGE VOLTAGE GAIN : 100dB
. VERY LOW SUPPLY CURRENT/AMPLI : 375µA
. LOW INPUT BIAS CURRENT : 20nA
. LOW INPUT OFFSET VOLTAGE : 5mV max.
(for more accurate applications, use the equivalent parts
LM124A-LM224A-LM324A which feature 3mV max)
. LOW INPUT OFFSET CURRENT : 2nA
. WIDE POWER SUPPLY RANGE :
SINGLE SUPPLY : +3V TO +30V
DUAL SUPPLIES : ±1.5V TO ±15V
DESCRIPTION
These circuits consist of four independent, high
gain, internally frequencycompensatedoperational
amplifiers . They operatefroma singlepowersupply
over a wide range of voltages. Operation from split
power supplies is also possible and the low power
supply current drain is independent of the magnitude of the power supply voltage
